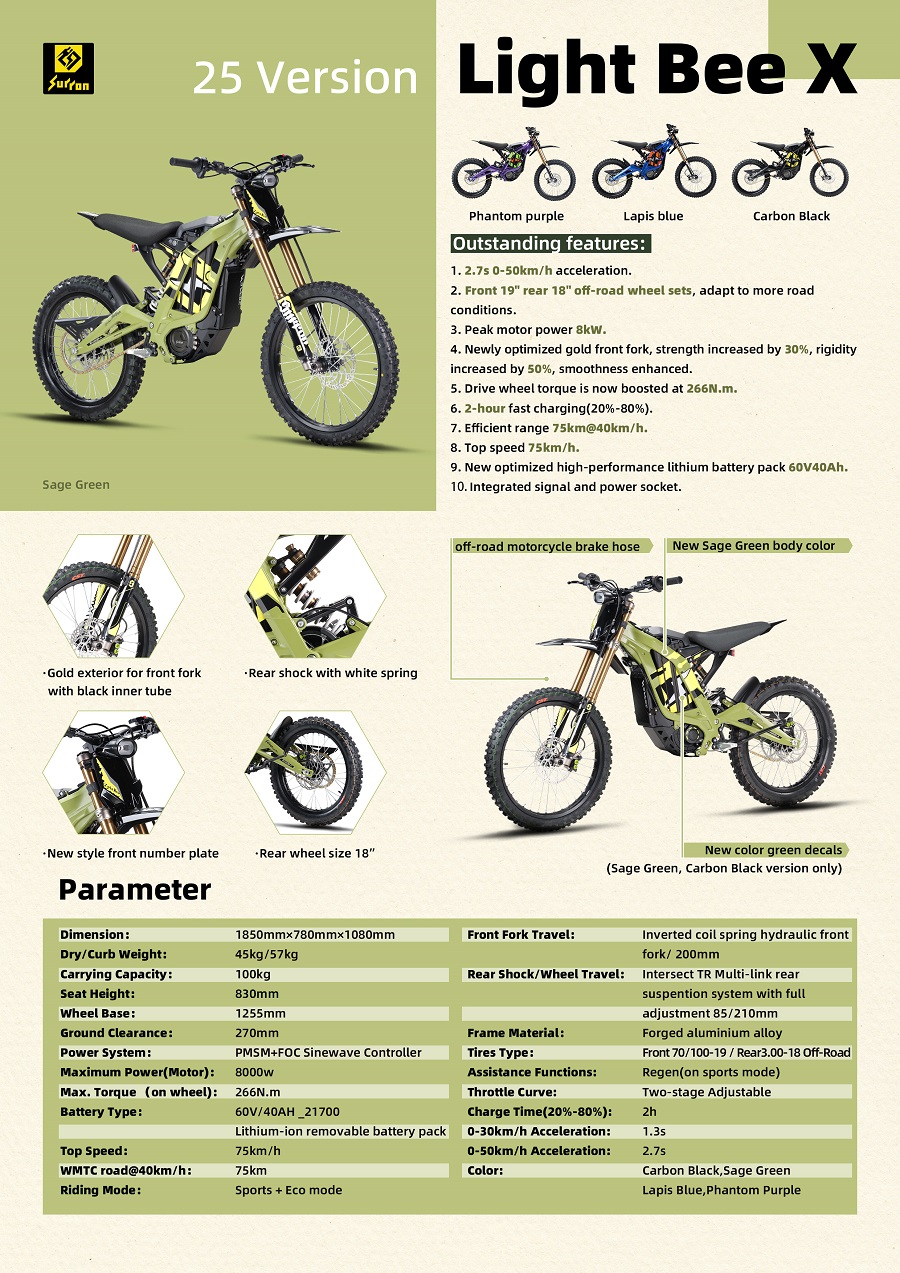

LIGHT BEE X

The Light Bee X offers 60V of power from a removable Panasonic lithium ion battery pack. A forged, lightweight aluminum frame, combined with high-spec components, results in a total weight of just 50 kg. 4-piston hydraulic disc brakes are mounted front and rear.

The LCD dash is handlebar-mounted, and a  convenient USB charger sits right in front of the rider. With a climbing ability of over 45 degrees, up to 100 km of range and a short 2.5-3.5-hour charge time, the Light Bee X offers hours of near-silent fun.


Updates to our 2022 models include:

  • New colours (black, blue, silver) and optional graphics
  • Sine wave controller for smoother power with more torque, plus ReGen for improved range
  • KKE or DNM suspension
  • Improved riding position: wider, thicker seat combined with a wider, higher handlebar
  • Heavier-duty gold O-ring chain for lower maintenance and reduced noise
  • Updated brakes: 4-piston, titanium-finished calipers, now with sintered pads for improved heat dissipation and braking power
  • Pro handlebar grips in grey

MSRP: 16800AED

*Unless otherwise noted, ALL products sold from Sur Ron™ and authorized dealers are sold with the sole intention for off road or race track use only. This product or products may not comply with some State, Federal, Provincial and/or Local laws, ordinances, regulations. The buyer takes full responsibility of the use of these products on their vehicle which may or may not conform to all applicable laws and regulations for on road or highway use.

  • Ultra Lightweight Frame

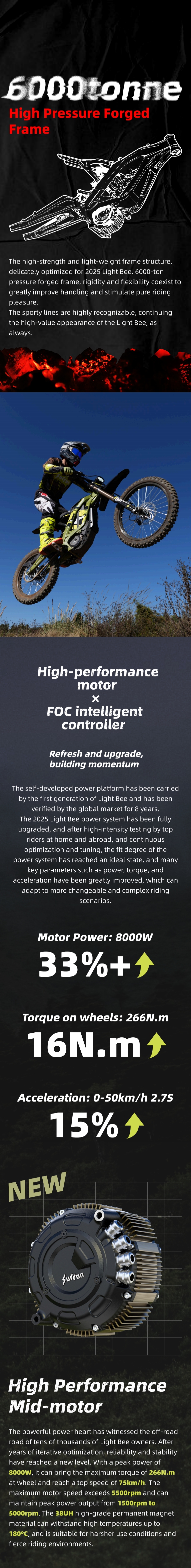

    The Light Bee's 7.8 kg frame is constructed of aviation-grade aluminum alloy via a fully automatic welding process that ensures consistency in production.

  • High Performance Brakes

    The braking system features opposed, four-piston hydraulic calipers with metallic brake pads and 203 mm discs for safe and reliable stopping power.

  • Sporty Performance

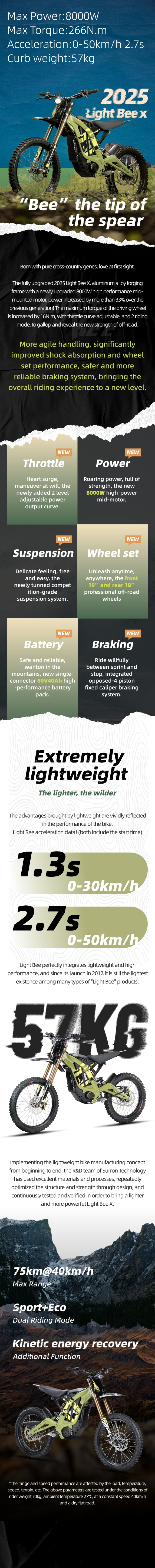

    In SPORTS mode, the Light Bee X puts out 6 kW of power and 250 Nm of torque. That's more than enough for tackling jumps and climbing hills!

50 kg curb weight
100+ km effective cruising range
Fast charging within 3 hours
250 Nm max torque
Climbing angle of 45 degrees

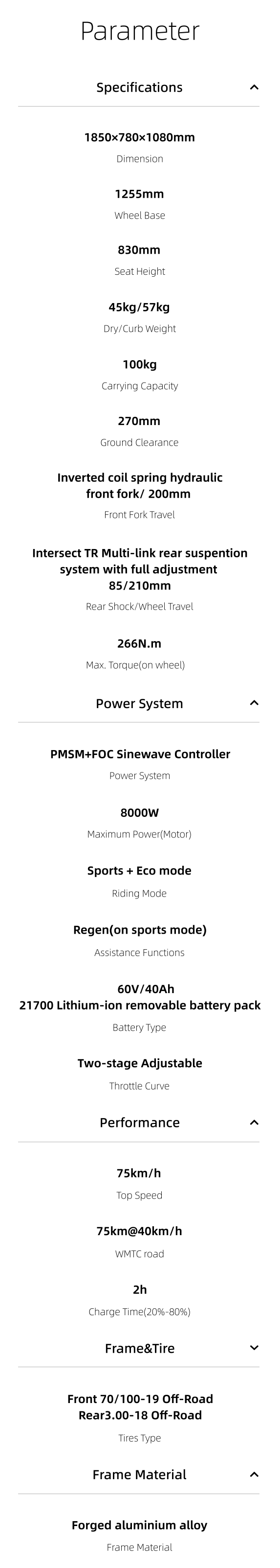

MOTOR
Motor Type:PMSM
Weight / Motor External Diameter:7.0kg / 180mm
Motor Axial Length:130mm
Peak Efficiency:95.60%
Cooling Method:Air-Cooled
CONTROLLER

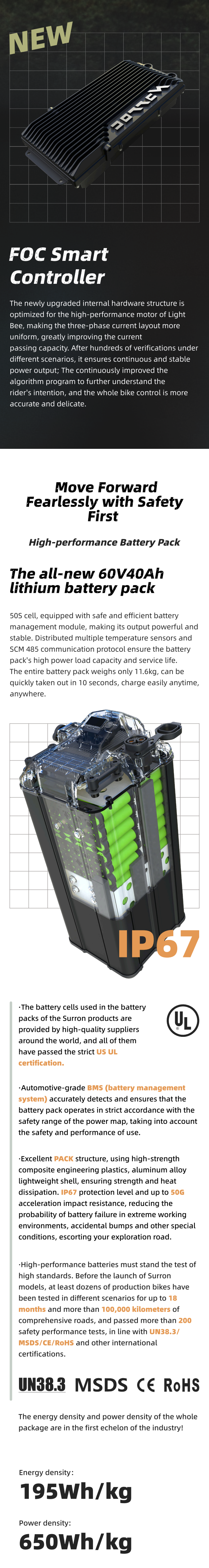

Controller Type:X Version Sine Wave
Dimensions:240mm x 110mm x 50mm
Peak Efficiency:98.50%
Power Modes:Eco and Sport
MOTOR POWER SYSTEM
Rated Voltage:60V (DC)
Rated Power / Peak Power:3,000W / 6,000W
Motor Shaft Output Torque @ 1000RPM:35.40Nm
Rated Rotation Speed:4300rpm
Peak Efficiency:97.8%
Range of Efficiency (≥80):1.4Nm - 21.5Nm
CERTIFICATES
Road Legal:No
TRANSMISSION
Gear Ratio:1:7.6
Transmission:Primary Belt & 420 Drive Chain
ELECTRICAL COMPONENTS
Battery:60V 32A Lithium Battery with 176 Panasonic Cells
Battery Life:500 Cycles (reduces thereafter)
Battery Charge Indicator:Integrated LCD Display
Charger:10A
Charging Time:2.5-3.5 Hours
USB Connection:Single USB-2.1 A Socket
Speedometer:LCD Digital Speedometer
Headlight & Rear Light:LED
VEHICLE
Chassis & Swingarm:Forged Aluminum
Chassis Surface & Colour Processing:Anodic Oxidation
Front Suspension:KKE or DNM, Adjustable for Preload & Rebound
Rear Shock Absorber:KKE or DNM Shock with TR Suspension Link System, Adjustable for Compression & Rebound
Wheel Type & Size:19 x 1.4 Wire-Spoke Wheels Front/Rear, Alloy Hubs
Tire Size:70/100-19 Front/Rear
Max Range:100km @ 32km/h depending upon terrain
Net Weight:47kg (Plus Battery
Max Load:100kg (220 lbs.)
Max Climbing Angle:45 degrees
Rear Sprocket:48T
Side Stand:With Kill Switch
Vehicle Dimensions:1,870mm x 780mm x 1,040mm
Minimum Ground Clearance:270mm
Wheelbase:1,260mm
Seat Height:84-88cm
